Qwiic Joystick (COM-15168) Cheap Buy

DESCRIPTION

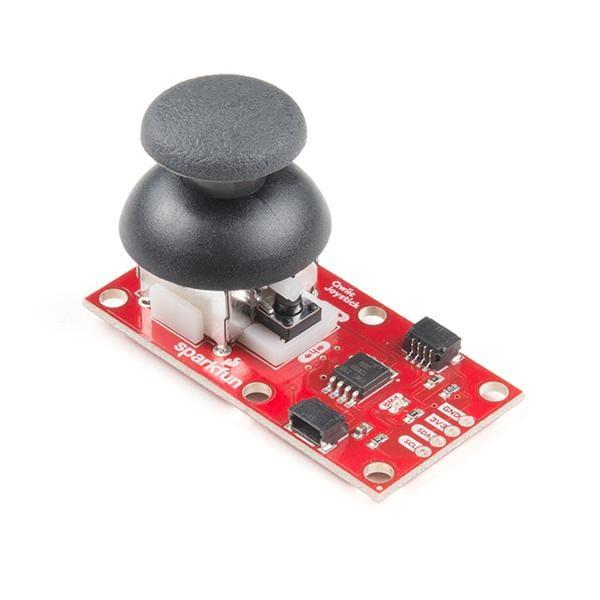

Now, you can easily add an HID/controller to your project! The SparkFun Qwiic Joystick combines the convenience of the Qwiic connection system and an analogue joystick that feels reminiscent of the thumbstick from a PlayStation 2 controller. With the pre-installed firmware, the ATtiny85 is acting as an intermediary (microcontroller) for the analogue and digital inputs from the joystick. This allows the Qwiic Joystick to report its position over I2C. Utilising the handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.

The joystick is similar to the analogue joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply measured with two 10 kΩ potentiometers, connected with a gimbal mechanism that separates the horizontal and vertical movements. This joystick also has a select button that is actuated when the joystick is pressed down. The SparkFun Qwiic Joystick’s I2C address is also software selectable so you can plenty of them to the same bus without any risk of collision!

FEATURES

• Qwiic Compatible
• Software Selectable Slave Address
• Low Power ATtiny85 controller
• Reports X and Y Joystick position + button press

RESOURCES

• Schematic
• Eagle Files
• Hookup Guide
• ATtiny85 Firmware
• Arduino Library
• Example Code
• GitHub
