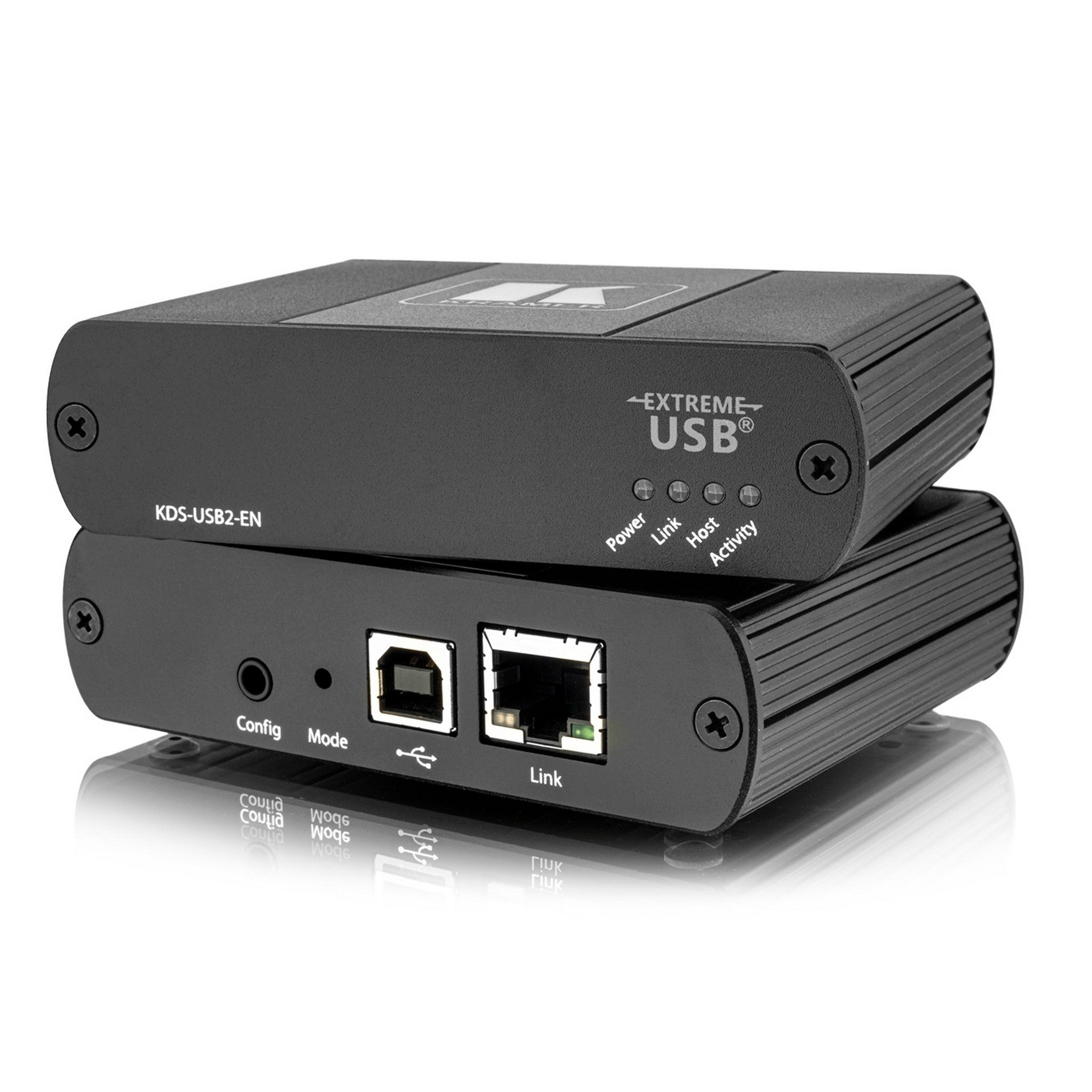

Kramer KDS-USB2-EN USB 2.0 High-Speed Extension Encoder

KDS-USB2-EN is a USB 2.0 high-speed encoder for extending USB signals between a host computer and any USB peripheral device such as a mouse, keyboard, display, camera, mobile device, media player, or hard drive. KDS-USB2-EN connects to a host computer enabling communication with the USB devices that are connected to a KDS-USB2-DEC decoder (sold separately).

KDS-USB2-EN can be paired with one KDS-USB2-DEC decoder for basic one-to-one USB extension, but with the purchase of additional units, you can naversify your USB extension system. For example, connect USB cameras in multiple locations to one computer or enable users in multiple locations to collaborate using the same host computer over a Local Area Network (LAN), in real time, using their own keyboards, mice and touch screens. Using Kramer’s cloud-based control platform, you can map and/or control these multi-unit setups.

Key Features

• High-Speed Extension – Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable.
• Achieves USB 2.0 throughput up to 480 Mbps point-to-point or over LAN.
• Note: Use recommended Kramer cables for best performance.
• Extend Multiple Devices – Connect to all 4 decoder (sold separately) ports simultaneously with 5 Volts, 500 mA available on each port.
• Collaboration – Pair up to seven decoders (sold separately) to one encoder/host computer for extended, multi-location collaboration.
• SwitchableUSB – Construct one-to-many and many-to-many unit setups using Kramer’s cloud-basedcontrol platform to manage the mapping and switch the connections.
• Reliable and Certified – Passes all key USB-IF compliance tests and FCC/CE Class B certified.
• True Plug and Play – No software drivers required.
• Compatibility – Works with all major operating systems including Windows, macOS and Linux.

Technical Specifications

PORTS
1 USB
On a USB type B connector for host computer
1 CAT 5/6
On an RJ-45 connector
EXTENSION LINE
Direct Connect
Up to 100m (330 ft) over solid core Cat 5e/6/7 cable
Network Connect
Up to 100m (330 ft) between switches over solid core CAT 5e/6/7 cable (One local to seven remote pairings supported for Simultaneous Users Interaction)
Note: For best performance use recommended Kramer cables
GENERAL
Maximum Throughputs
USB 2.0 – Up to 480 Mbps*
Maximum Throughputs
USB 1.1 – Up to 12 Mbps
Traffic Types
All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk)
Device Types
All USB 2.0 and 1.1 Device Types and Classes
Maximum Number of Connected USB Devices
30
Networking Standards
1000BASE-T
Networking Data Traffic
Layer 2
Networking Control Traffic
Layer 3
USER INTERFACE
Controls
Front panel pairing button
Indicators
Power, link, host, activity LEDs
POWER
Source
Host computer
Consumption
780mA
ENCLOSURE
Type
Black anodized aluminum
Cooling
Convection ventilation
ACCESSORIES
Included
1 USB2 type A male to type B male cable
PRODUCT DIMENSIONS
9.50cm x 8.00cm x 2.54cm (3.74” x 3.15” x 1.00”) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS
49.00cm x 18.60cm x 58.80cm (19.29” x 7.32” x 23.15”) W, D, H
SHIPPING WEIGHT
0.4kg (0.8lbs) approx.
