MagShift

Name: Heusinkveld MagShift Sequential Shifter Lowest Pice Cheap Pice
SKU: Heusinkveld MagShift Sequential Shifter Lowest Pice Cheap Pice-6716
Availability: InStock

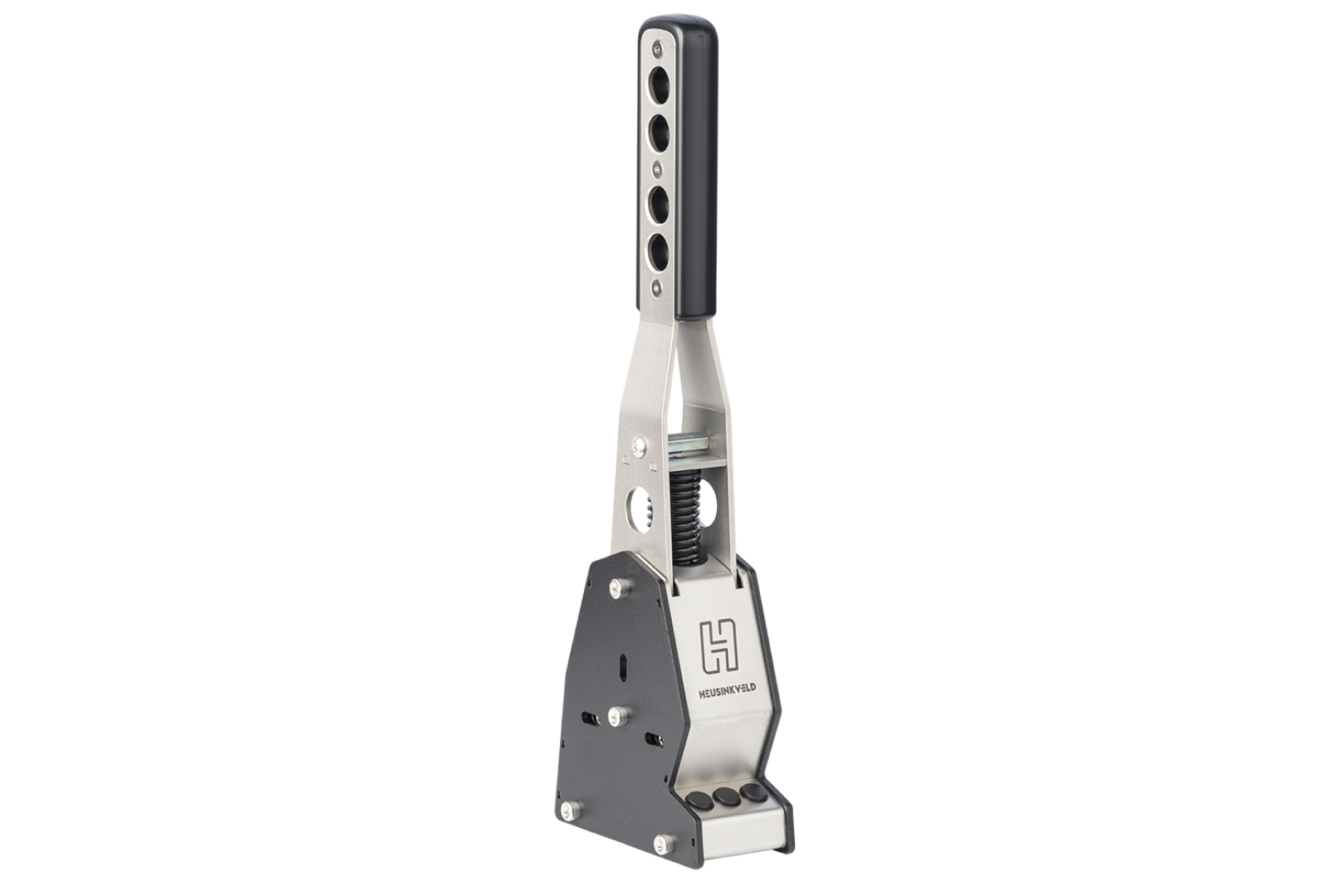

MagShift is the perfect sequential shifter for rally cars, GT’s, touring cars and classic racing. Upgrade your simulator with the most versatile shifter available, packed with extra features.

Overview

Adjustability

The magnetic shift system is 3-way adjustable. The overall force, upshift force and downshift force can all be set innavidually. This for example allows you to set a firm upshift and soft downshift if you wish to do so.

Set your preferred peak force anywhere between 4,5 and 11kg. At the firmest setting you’ll be able to simulate the shifter forces as experienced in real race cars.

The graph shows the shifter force for any position of the lever at the softest, medium and hardest MagShift setting.

Sensors & Electronics

Opto-electronic sensors are used to detect shifts. This means that there is no wear on electronic components, ensuring reliable operation for years to come. The system is plug-and-play, after connecting MagShift via USB you can immediately assign functions in your favorite simulator software.

Mini button box

Be in control with the 3 extra buttons in the base of the MagShift. Buttons can be assigned to any available function in your favourite simulator software.

Extra functions can be unlocked when you install Heusinkveld SmartControl software. With SmartControl, you can set up to 10 fully customizable outputs using the lever and the 3 buttons. You can trigger multiple outputs simultaneously, delayed or independently from a single input.

SmartControl Live

SmartControl Live is software which is designed to run in the background while using your simulator. It allows you to switch between profiles created using SmartControl while driving. With MagShift, a possible use case would be to change the direction of up- and downshifts and the touch of a button.

Mounting adjustments & dimensions

The mounting bracket allows for several adjustments to fine-tune the position of your MagShift.

Yaw adjustment: by rotating the U-bracket relative to the mounting platform.
Height adjustment: by choosing any of the 3 horizontal rows of mounting holes in the U-bracket.
Tilt adjustment: by choosing any diagonal combination of the mounting holes in the U-bracket.

The height of the MagShift (from the bottom of the mounting bracket to the top of the lever) is as follows.

36,2 cm (14,25 in) when installed in the lowest position.
37,7 cm (14,84 in) when installed in the highest position.

The full mounting dimensions for MagShift can be seen here (all dimensions in mm).
